Agenda

Configuration Space

• Configuration space (\(\cal{C}\)-space) is a subset of \(\bb{R}^n\) containing all possible states of the system(state space in RL).
• \(\cal{C}_{free}\subseteq \cal{C}\) contains all valid states.
• \(\cal{C}_{obs}\subseteq \cal{C}\) represents obstacles.
• Examples:
  • All valid poses of a robot.
  • All valid joint values of a robot.
  • ...

Motion Planning

• Problem:
  • Given a configuration space \(\cal{C}_{free}\)
  • Given start state \(q_{start}\)and goal state \(q_{goal}\) in \(\cal{C}_{free}\)
  • Calculate a sequence of actions that leads from start to goal
• Challenge:
  • Need to avoid obstacles
  • Long planning horizon
  • High-dimensional planning space

Motion Planning

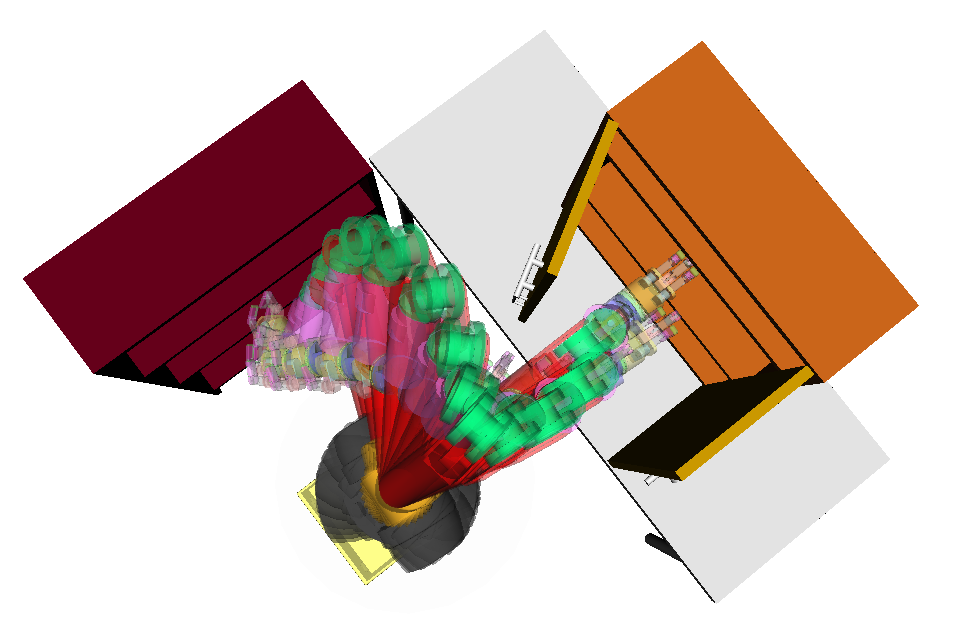

Examples

Examples

• Ratliff N, Zucker M, Bagnell J A, et al. CHOMP: Gradient optimization techniques for efficient motion planning, ICRA 2009
• Schulman, John, et al. Finding Locally Optimal, Collision-Free Trajectories with Sequential Convex Optimization, RSS 2013

Sample-based Algorithm

• The key idea is to explore a smaller subset of possibilities randomly without exhaustively exploring all possibilities.
• Pros:
  • Probabilistically complete
  • Solve the problem after knowing partial of \(\cal{C}_{free}\)
  • Apply easily to high-dimensional \(\cal{C}\)-space
• Cons:
  • Requires to find path between two close points
  • Does not work well when the connection of \(\cal{C}_{free}\) is bad
  • Never optimal

Probabilistic Roadmap(PRM)

• The algorithm contains two stages:

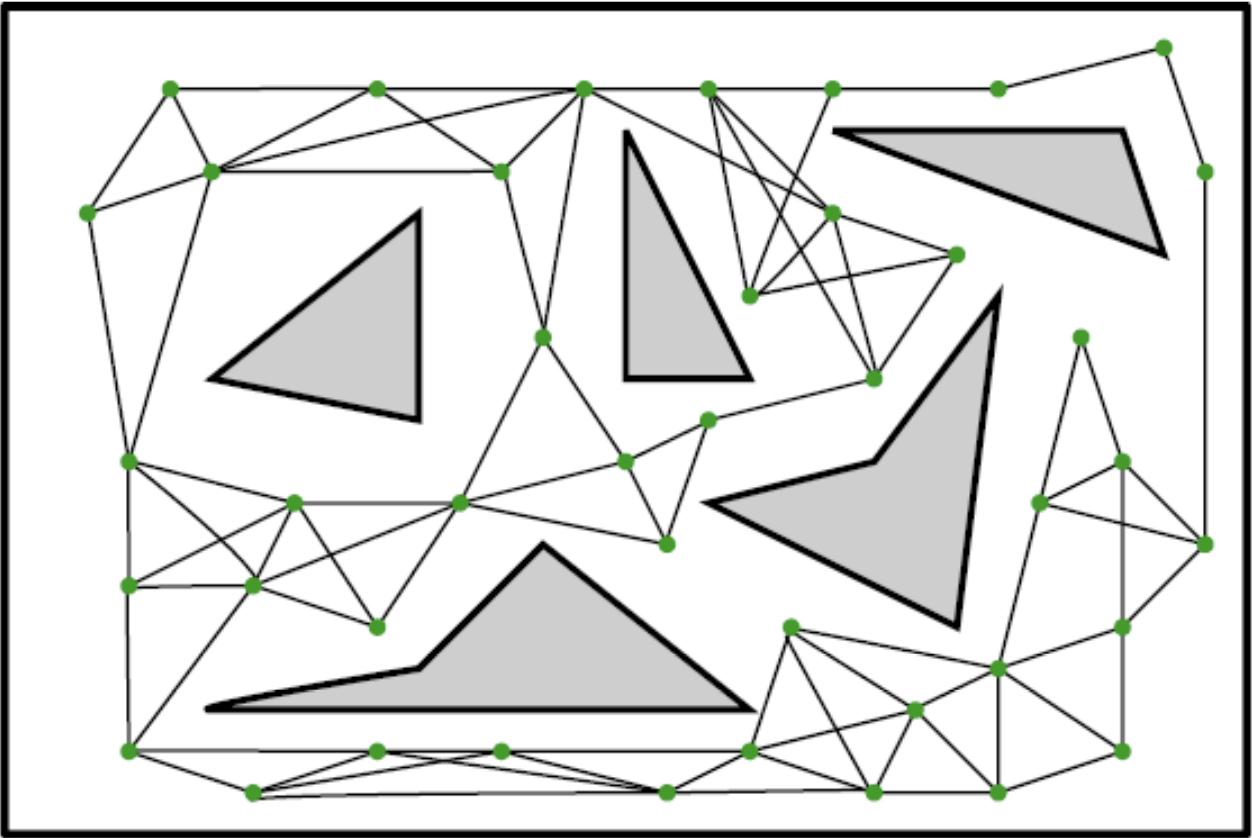

• Map construction phase
• Randomly sample states in \(\cal{C}_{free}\)
• Connect every sampled state to its neighbors
• Connect the start and goal state to the graph

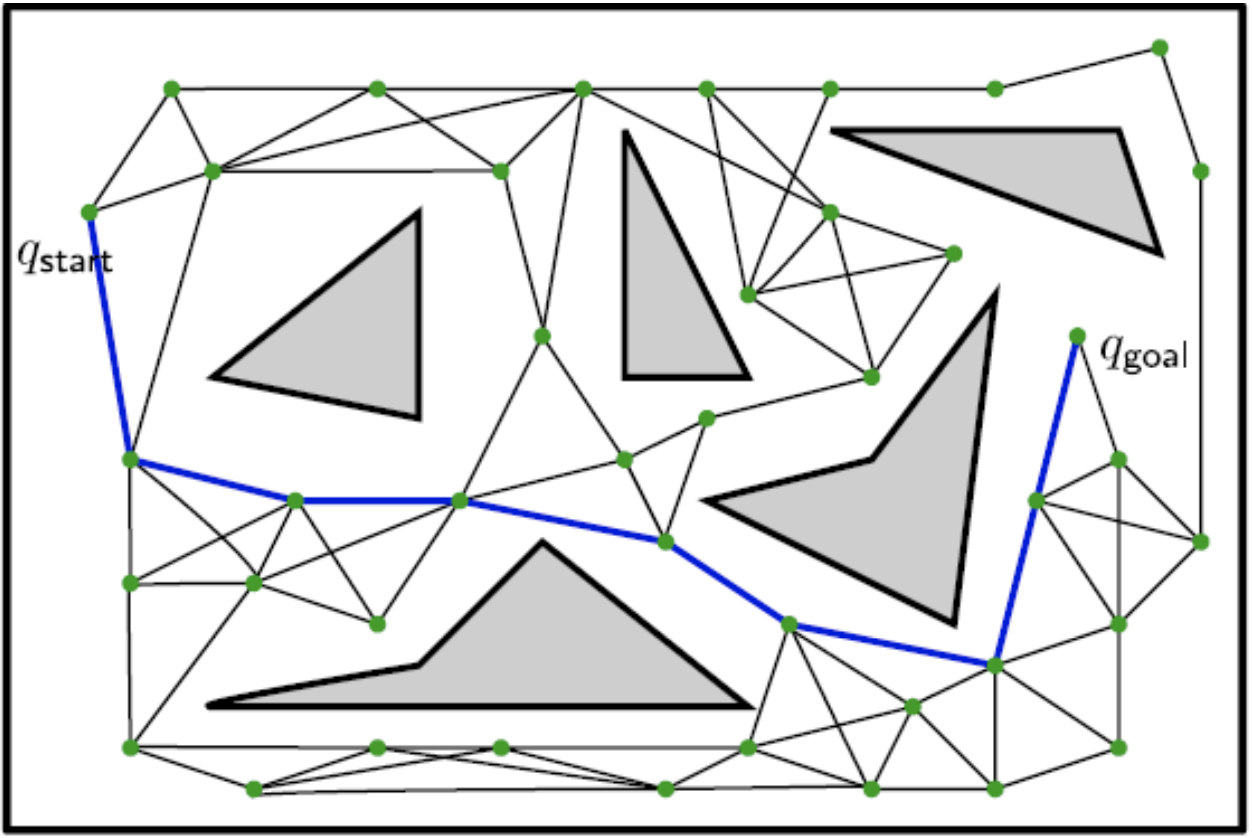

• Query phase
• Run path finding algorithms like Dijkstra

Rejection Sampling

• Aim to sample uniformly in \(\cal{C}_{free}\).
• Method
  • Sample uniformly over \(\cal{C}\).
  • Reject the sample not in the feasible area.

Pipeline

Challenges

• Connect neighboring points:
  • In general it requires solving dynamics
• Collision checking:
  • It takes a lot of time to check if the edges are in the configuration space.

Example

Example

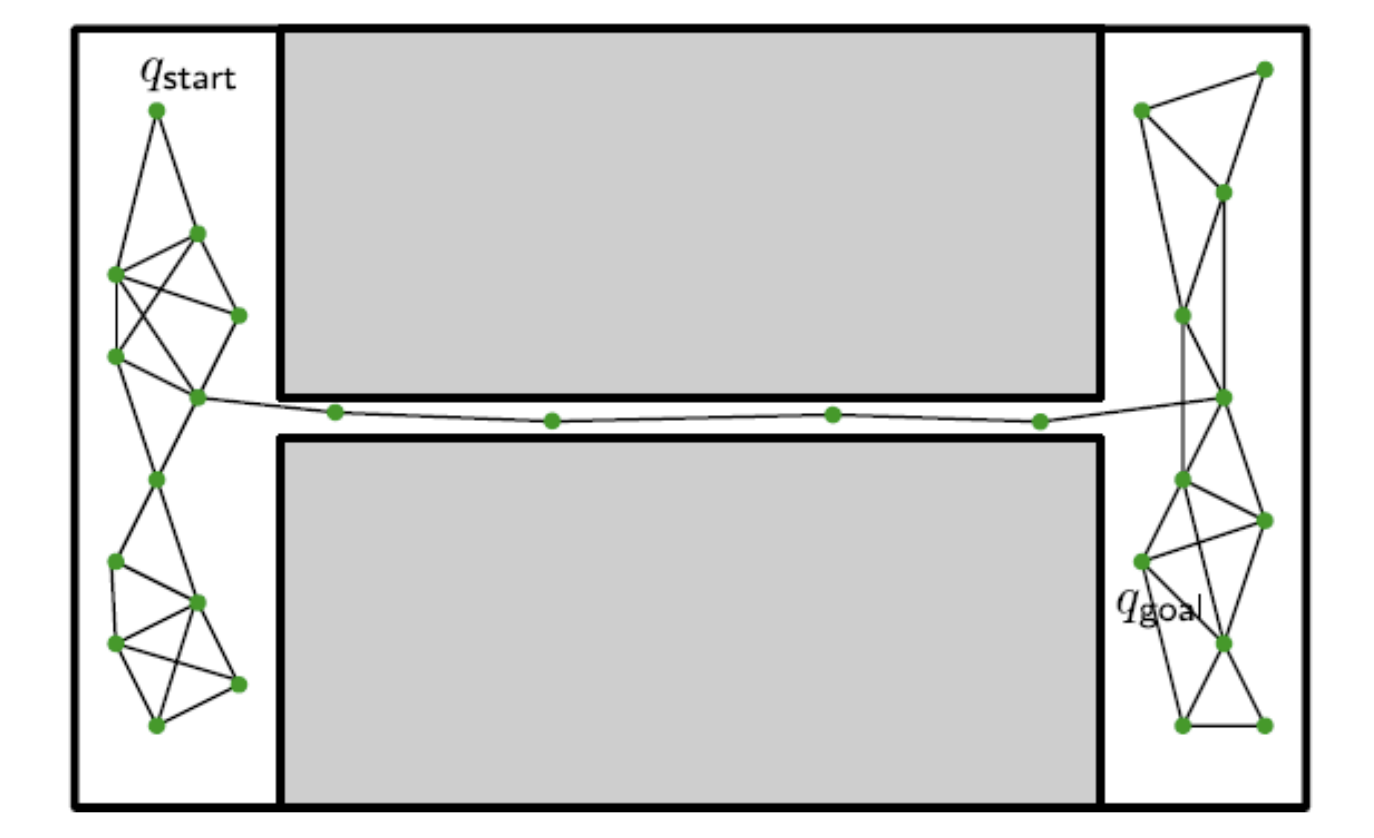

Limitations: Narrow Passages

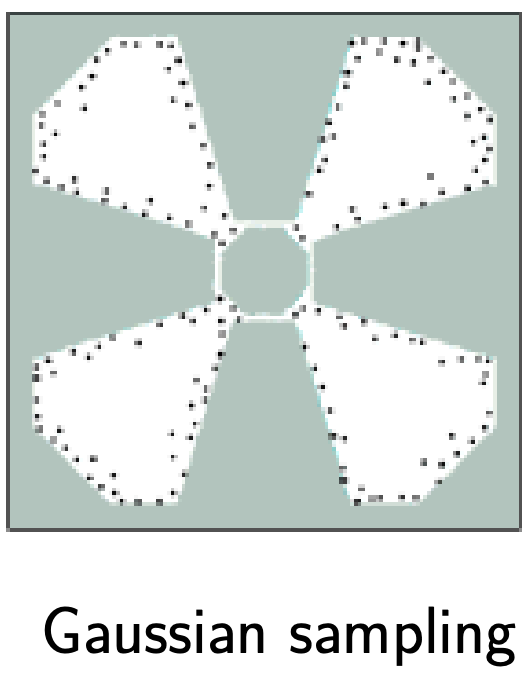

Gaussian Sampling

• Generate one sample \(q_1\) uniformly in the configuration space
• Generate another sample \(q_2\) from a Gaussian distribution \(\cal{N}(q_1, \sigma^2)\)
• If \(q_1\in\cal{C}_{free}\) and \(q_2\neq \cal{C}_{free}\) then add \(q_1\)

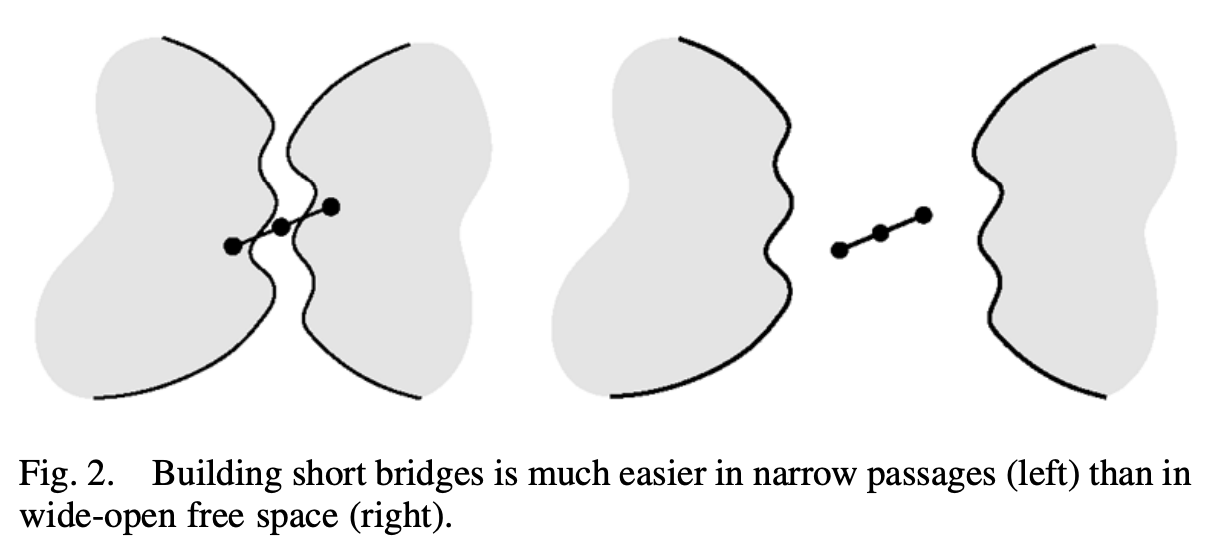

Bridge Sampling

• Generate one sample \(q_1\) uniformly in the configuration space
• Generate another sample \(q_2\) from a Gaussian distribution \(\cal{N}(q_1, \sigma^2)\)
• \(q_3=\frac{q_1+q_2}{2}\)
• If \(q_1\), \(q_2\) are not in \(\cal{C}_{free}\) then add \(q_3\)

Rapidly-exploring Random Tree(RRT)

• RRT grows a tree rooted at the start state by using random samples from configuration space.
• As each sample is drawn, a connection is attempted between it and the nearest state in the tree. If the connection is in the configuration space, this results in a new state in the tree.

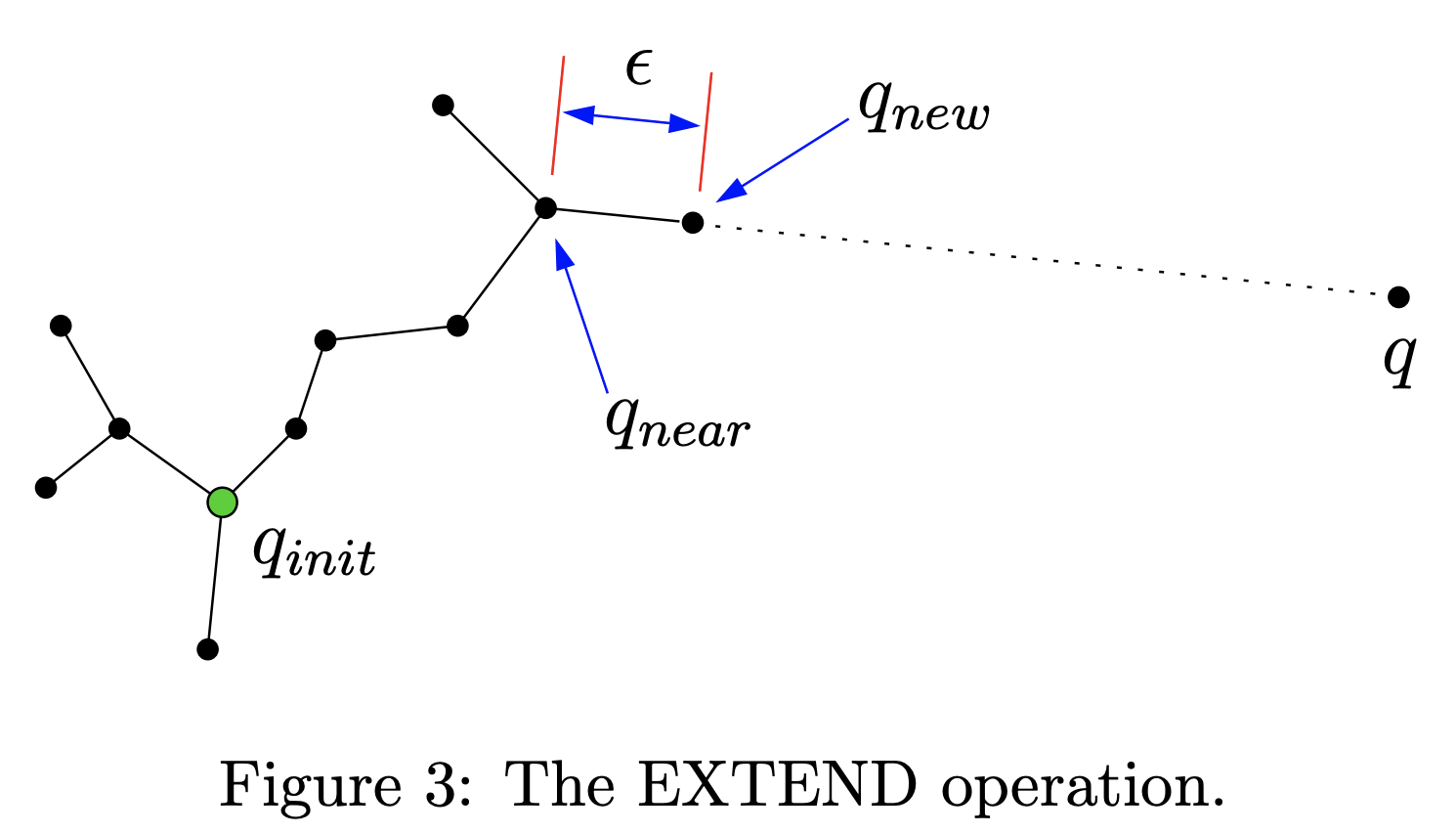

Extend Operation

Pipeline

Examples

Challenges

• Find nearest neighbor in the tree
• We need to support online quick query
• Examples: KD Trees
• Need to choose a good \(\epsilon\) to expand the tree efficiently
• Large \(\epsilon\): hard to generate new samples
• Small \(\epsilon\): too many samples in the tree

RRT-Connect

• Grow two trees starting from \(q_{start}\) and \(q_{start}\) respectively instead of just one.
• Grow the trees towards each other rather than random configurations
• Use stronger greediness by growing the tree with multiple epsilon steps instead of a single one.

Pseudo Code
